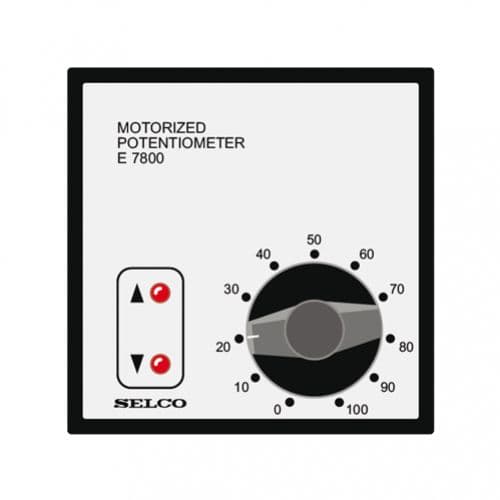

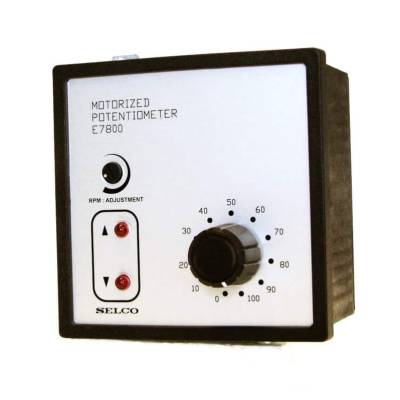

E7800 Motorized potentiometer

E7800 Motorized potentiometer


Productgroep: [4801] Selco

Productinformatie

Algemeen:
Sealed wire wound potentiometer
Built-in dust seal
Low speed motor for accurate control
High drive capability
Resistance from 100 to 10 kohm
Large size knob for manual control
LED indication of turn direction
Optional programmable RPM
AC or DC supply

Download specificaties »

Certificaten


  • BV

Artikelen

Meer informatie over de actuele voorraad? Klik hier voor meer handige tips.
  • Zie levertijd
  • Op voorraad
  Artnr. Naam VPE Bruto prijs
E7800.0080 Motorized Potentiometer. 230-240V AC, 2 rpm, 10 turn. 5k? 1 st. € 1016,77
E7800.0090 Motorized Potentiometer. 230-240V AC, 2 rpm, 10 turn, 100? 1 st. € 1016,77
E7800.0130 Motorized Potentiometer. 230-240V AC, 2 rpm, 10 turn, 2k? 1 st. € 1016,77
E7800.0640 Motorized Potentiometer. 24V DC, 0.8-6 rpm, 1 turn. 5k? 1 st. € 1016,77
E7800.0660 Motorized Potentiometer. 24V DC, 0.8-6 rpm, 1 turn,200? 1 st. € 1016,77
E7800.0670 Motorized Potentiometer. 24V DC, 0.8-6 rpm, 1 turn, 500? 1 st. € 1016,77
E7800.0680 Motorized Potentiometer. 24V DC, 0.8-6 rpm, 1 turn, 1k? 1 st. € 1016,77
E7800.0700 Motorized Potentiometer. 24V DC, 0.8-6 rpm, 1 turn, 10k? 1 st. € 1016,77
E7800.0710 Motorized Potentiometer. 24V DC, 0.8-6 rpm, 10 turn. 5k? 1 st. € 1016,77
E7800.0720 Motorized Potentiometer. 24V DC, 0.8-6 rpm, 10 turn, 100? 1 st. € 1016,77
E7800.0750 Motorized Potentiometer. 24V DC, 0.8-6 rpm, 10 turn, 1k? 1 st. € 1016,77
E7800.0760 Motorized Potentiometer. 24V DC, 0.8-6 rpm, 10 turn, 2k? 1 st. € 1016,77
E7800.0770 Motorized Potentiometer. 24V DC, 0.8-6 rpm, 10 turn, 10k? 1 st. € 1016,77

The SELCO E7800 Motorised Potentiometer is typically used as an interface between increase/decrease relay contacts (or push buttons) and a device requiring control by an external potentiometer (e.g. the speed trim of an electronic governor).

All three wires of the potentiometer are directly accessible on external connection terminals, thus providing the best possible flexibility for almost any application.

A special version of the E7800 with DC voltage output is also available. The DC output voltage follows the position of the potentiometer. The design of the E7800 ensures that the potentiometer will "remember" its position although supply is lost
