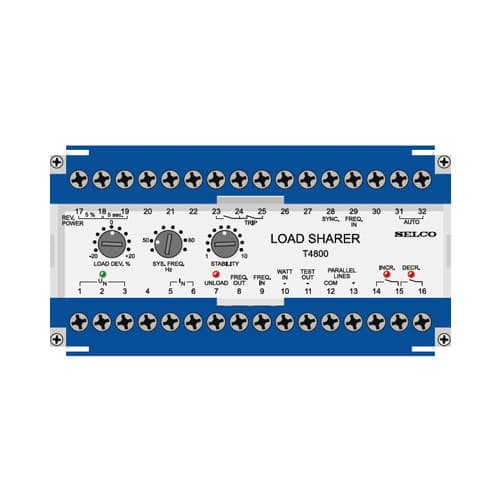

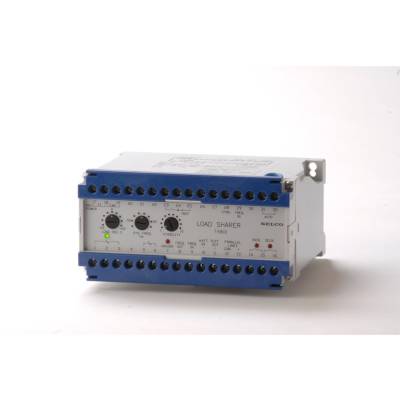

T4800 Load sharer

T4800 Load sharer

Productgroep: [4801] Selco


Active load sharing
System frequency control
Relay based speed control
Reverse power protection
Soft unload with breaker trip
50 hour burn-in before test
Certified for marine use

Download specificaties »


  • BV
  • GL


Meer informatie over de actuele voorraad? Klik hier voor meer handige tips.
  • Zie levertijd
  • Op voorraad
  Artnr. Naam VPE Bruto prijs
T4800.0010 Load Sharer. 400/450V 5A 1 st. € 2366,24
T4800.0020 Load Sharer. 230V 5A 1 st. € 2366,24
T4800.0030 Load Sharer. 415/480V 5A 1 st. € 2366,24
T4800.0050 Load Sharer. 400/450V 1A 1 st. € 2366,24
T4800.0070 Load Sharer. 100/110V 5A 1 st. € 2366,24

The SELCO T4800 Load Sharer is designed to control a generator operating in parallel with the grid, or a generator operating in parallel with other generators (which are also controlled by T4800 units).

The T4800 will continuously measure and compare the active current on the generator to an external DC reference signal connected to the "parallel lines" input. The T4800 will increase or decrease the speed of the generator (through the governor) if it finds the active current level to be either too low or two high. Two built-in relays provide the increase and decrease pulses for a conventional governor. The strength (width) of the pulses is proportional to the frequency/phase deviation. The E7800 Motorised Potentiometer can be used to adapt the contact pulses to a signal suitable for the speed trim input of an electronic speed controller
