Productgroep: [4801] Selco

Selco M8100 synchronoscope


Direct uit voorraad Snelle levering
Hoogwaardige kwaliteit tegen een scherpere prijs
Flexibel en klantgericht We denken niet alleen met u mee, we denken vooruit
Altijd persoonlijk en direct bereikbaar Geen keuzemenu of wachttijd, maar direct contact
  • Same accuracy as pointer synchroscope
  • 38 illuminated points (LEDs)
  • Indication and bus and generator voltage
  • Fully insulated voltage inputs
  • Optional closure relay
  • 50 hour burn-in before test
  • Certified for marine use

Artikelen

Meer informatie over de actuele voorraad? Klik hier voor meer handige tips.

10 artikelen Alle prijzen excl. btw
Levertijd ca. 1 wk
M8100.0010
M8100.0010

Synchroscope. 450/400V

€ 720,00 excl. BTW
VPE 1 st.
− +
Levertijd ca. 1 wk
M8100.0020
M8100.0020

Synchroscope. 230V

€ 720,00 excl. BTW
VPE 1 st.
− +
Levertijd ca. 1 wk
M8100.0030
M8100.0030

Synchroscope. 480/415V

€ 720,00 excl. BTW
VPE 1 st.
− +
Levertijd ca. 1 wk
M8100.0040
M8100.0040

Synchroscope. 110/100V

€ 720,00 excl. BTW
VPE 1 st.
− +
Levertijd ca. 1 wk
M8100.0050
M8100.0050

Synchroscope. 450/400V. With check synchronizer relay

€ 1112,86 excl. BTW
VPE 1 st.
− +
Levertijd ca. 1 wk
M8100.0060
M8100.0060

Synchroscope. 230V. With check synchronizer relay

€ 1112,86 excl. BTW
VPE 1 st.
− +
Levertijd ca. 1 wk
M8100.0070
M8100.0070

Synchroscope. 480/415V. With check synchronizer relay

€ 1112,86 excl. BTW
VPE 1 st.
− +
Levertijd ca. 1 wk
M8100.0080
M8100.0080

Synchroscope. 110/100V. With check synchronizer relay

€ 1112,86 excl. BTW
VPE 1 st.
− +
Levertijd ca. 1 wk
M8100.0090

Synchroscope 220/240V

€ 1112,93 excl. BTW
VPE 1 st.
− +
Levertijd ca. 1 wk
M8100.0110

Synchroscope 120/127V

€ 1112,93 excl. BTW
VPE 1 st.
− +
M8100.0010 Synchroscope. 450/400V
Verwachte levertijd: 1 week
− +
€ 720,00 VPE 1 st.
M8100.0020 Synchroscope. 230V
Verwachte levertijd: 1 week
− +
€ 720,00 VPE 1 st.
M8100.0030 Synchroscope. 480/415V
Verwachte levertijd: 1 week
− +
€ 720,00 VPE 1 st.
M8100.0040 Synchroscope. 110/100V
Verwachte levertijd: 1 week
− +
€ 720,00 VPE 1 st.
M8100.0050 Synchroscope. 450/400V. With check synchronizer relay
Verwachte levertijd: 1 week
− +
€ 1112,86 VPE 1 st.
M8100.0060 Synchroscope. 230V. With check synchronizer relay
Verwachte levertijd: 1 week
− +
€ 1112,86 VPE 1 st.
M8100.0070 Synchroscope. 480/415V. With check synchronizer relay
Verwachte levertijd: 1 week
− +
€ 1112,86 VPE 1 st.
M8100.0080 Synchroscope. 110/100V. With check synchronizer relay
Verwachte levertijd: 1 week
− +
€ 1112,86 VPE 1 st.
M8100.0090 Synchroscope 220/240V
Verwachte levertijd: 1 week
− +
€ 1112,93 VPE 1 st.
M8100.0110 Synchroscope 120/127V
Verwachte levertijd: 1 week
− +
€ 1112,93 VPE 1 st.

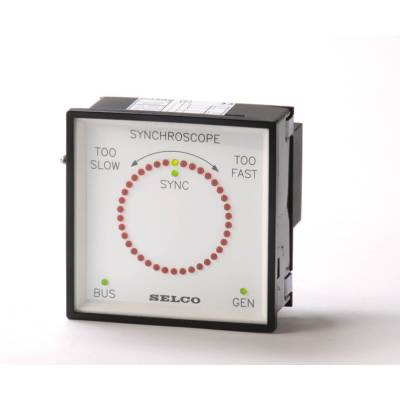

The M8100 Synchroscope provides illuminated indication of the frequency and phase deviation between voltages on two separate AC systems (e.g. a generator and a busbar). The M8100 will also indicate whether or not the two systems are live.

A moving light dot indicates the frequency deviation. The magnitude of the frequency deviation is indicated by the speed and direction of the movement

Clockwise movement indicates that the frequency is too high on the incoming system. Counter clockwise movement indicates that the frequency is too low. A steady light dot at 6 o’clock position indicates zero frequency deviation and 180 degrees phase deviation. Exact synchronization. frequency and phase accordance is achieved when the light dot is steady at the 12 o’clock position (when the green LEDs ignite).

The M8100 scale is made up from 38 bright red LEDs. The resolution provided by the 38 LEDs is almost as fine as a pointer synchroscope, however the LED based design is far better at withstanding environmental influence from vibration, temperature and humidity
