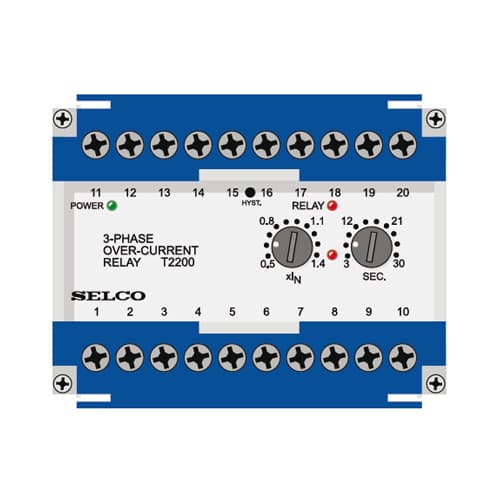

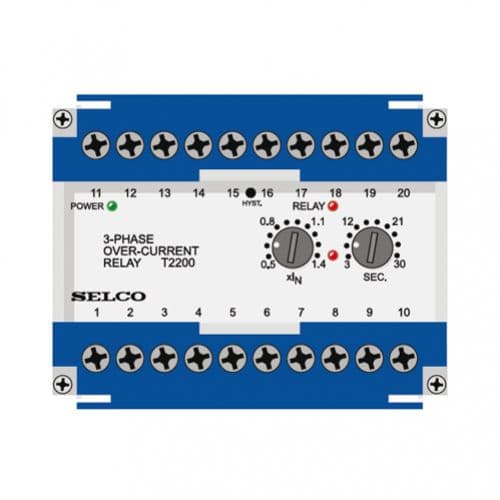

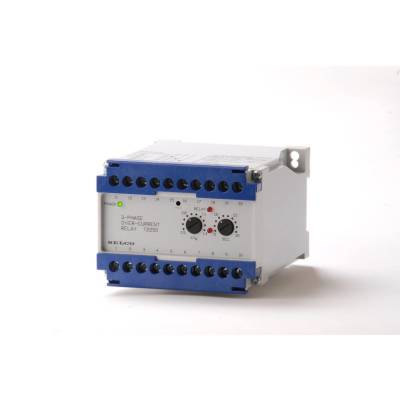

T2200 3 fase overspanning relais

Name: Overcurrent Relay. 400/450V 5A. Latching output, resetable
Brand: Selco
SKU: T2200.0010
Price: 945.6558 EUR
Availability: OutOfStock

T2200 3 fase overspanning relais

Productgroep: [4801] Selco

Productinformatie

Algemeen:: Protection of generators against overcurrent
Visual indication of power, pick-up and tripping relay
High precision digital countdown timer for delayed output
Accepts high supply voltage variations 60-110%
certified marine clasification

Download specificaties »

Certificaten

Vragen over dit product?

Of op zoek naar een soortgelijk product? Neem contact met ons op.

Contact »

Artikelen

Meer informatie over de actuele voorraad? Klik hier voor meer handige tips.

Zie levertijd
Op voorraad

Artnr.	Naam	VPE	Bruto prijs
T2200.0010	Overcurrent Relay. 400/450V 5A. Latching output, resetable	1 st.	€ 945,66
T2200.0020	Overcurrent Relay. 400/450V 5A. Normally energized output, latching, r	1 st.	€ 1099,73
T2200.0030	Overcurrent Relay. 230V 5A. Latching output, resetable	1 st.	€ 945,66
T2200.0040	3 phase overcurrent relay 110/230V 5A	1 st.	€ 831,89
T2200.0050	Overcurrent Relay. 230V 1A. Latching output, resetable	1 st.	€ 945,66
T2200.0070	Overcurrent Relay. 100/110V 5A. Latching output, resetable	1 st.	€ 945,66
T2200.0080	Overcurrent Relay. 415/480V 5A. Latching output, resetable	1 st.	€ 945,66
T2200.0100	Overcurrent Relay. 400/450V 5A. Instantly extra output relay	1 st.	€ 1099,73
T2200.0110	Overcurrent Relay. 400/450V 1A. Instantly extra output relay	1 st.	€ 1099,73
T2200.0200	3 phase overcurrent relay 110VAC 1A	1 st.	€ 831,89

Ga naar winkelwagen »

The T2200 Overcurrent Relay is designed for generator or feeder protection against overcurrent in each of the three phases. The T2200 detects the highest of the 3 input currents and, if this exceeds the preset level (0.5 - 1.4 x IN), the pick-up LED will indicate and the delay timer will be started. After the preset time (3-30 sec.) has expired, the output relay and the corresponding LED will be activated, provided that the current level was exceeded for the entire delay time.
